Micro-D Connectors

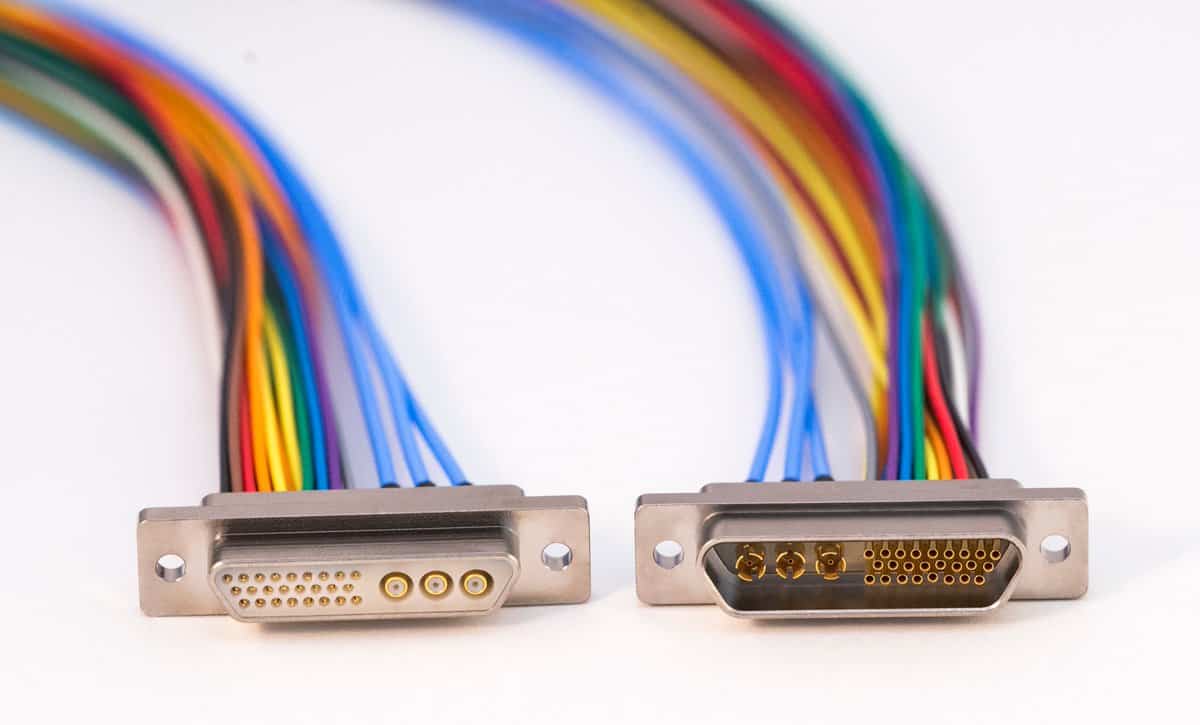

Omnetics rugged Micro-D connectors are designed to provide the utmost in reliability under the harshest of conditions, with extremely high tolerance to shock and vibration and temperatures of up to 260°C. The gold-plated flex pins can withstand more than 2000 mating cycles. NASA-qualified low outgassing versions are available for orbital and space applications.

The MIL-DTL-83513-compliant connectors can be configured with 9 to 51 contacts in up to four rows, with a variety of termination options including pre-wired, Surface Mount (Horizontal, Vertical or Edge), Flex Circuit Mount, Thru-Hole (Straight or Right Angle), solder cup and jumper.
