Military Spec MEMS Gyroscopes

Military Spec MEMS Gyroscopes

MEMS gyroscopes are compact angular velocity sensors that are essential components of modern navigation and control systems. As a subclass of microelectromechanical systems, MEMS gyros are built on silicon-based microfabrication technology. They measure rotational motion through the Coriolis effect, which occurs when a vibrating mass experiences angular velocity. These electronic gyroscopes convert the Coriolis force into electrical signals, enabling highly accurate, real-time feedback.

Jump to section:

• What is a MEMS Gyroscope?
• How do MEMS Gyroscopes Work?
• MEMS Gyroscopes vs. Traditional Gyroscopes
• Defense and Military Applications of MEMS Gyroscopes
• Integration with other MEMS Sensors
• Advantages of MEMS Gyroscopes in Defense
• Military standards for MEMS gyroscopes
• The Future of MEMS Gyroscopes in Defense Systems

What is a MEMS Gyroscope?

A MEMS gyroscope is a miniaturized device that detects angular velocity using vibrating structures. Unlike traditional spinning mass gyroscopes, MEMS sensors leverage microscopic mechanical components to determine changes in orientation. The design reduces size and power requirements while maintaining sufficient sensitivity for tactical and strategic defense applications.

How do MEMS Gyroscopes Work?

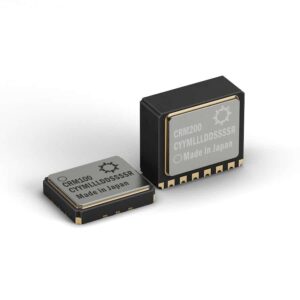

MEMS Gyroscopes by Silicon Sensing

MEMS gyroscopes use a vibrating structure, commonly referred to as a vibrating structure gyroscope or a Coriolis vibratory gyroscope, that detects movement through tiny shifts in resonating masses. When the device rotates, the Coriolis effect causes a measurable deflection in the structure, which is then translated into an electrical output. Advanced MEMS gyroscope sensors can capture motion across one, two, or all three axes (as with 3-axis MEMS gyroscopes), providing full spatial awareness.

MEMS Gyroscopes vs. Traditional Gyroscopes

Traditional gyroscopes rely on mechanical spinning rotors, which offer high precision but are bulky and sensitive to environmental conditions. MEMS gyroscopes, by contrast, offer advantages in ruggedness, size, and scalability. Their ability to be integrated with other MEMS sensors, such as MEMS accelerometers, allows for the creation of inertial measurement units (IMUs) with combined sensing capabilities. This integration supports advanced guidance, navigation, and control systems in compact packages.

Defense and Military Applications of MEMS Gyroscopes

MEMS gyroscopes are embedded in a wide range of defense technologies, offering reliable motion sensing for guidance, stabilization, targeting, and situational awareness. The following sections categorize key applications across defense domains:

Unmanned systems

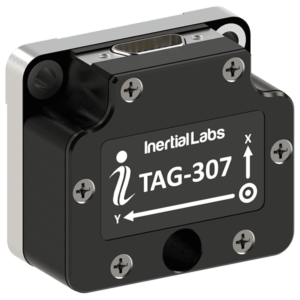

3-Axis MEMS Gyroscope by Inertial Labs

MEMS gyroscopes are integral to unmanned systems, where size, weight, and power efficiency are paramount. In UAVs (Unmanned Aerial Vehicles), UGVs (Unmanned Ground Vehicles), and USVs (Unmanned Surface Vehicles), MEMS gyro sensors support:

• Attitude and heading reference systems (AHRS)
• Autonomous navigation and obstacle avoidance
• Gimbal and payload stabilization
• Precision flight control
• Stabilized marine launch platforms

Their low power consumption makes them ideal for drones and robotics that operate in extended or autonomous missions.

Personal soldier equipment

Soldier-worn systems utilize MEMS gyroscopes to enhance individual situational awareness and survivability. Applications include:

• Helmet tracking in augmented reality (AR) systems
• Motion tracking in body-worn IMUs
• Weapon stabilization and aiming aids
• Health and injury monitoring through inertial sensing

By combining gyroscope data with GPS and other sensors, personnel can maintain orientation and mission alignment even in GPS-denied environments.

Manned aircraft and vehicles

In manned military platforms, MEMS gyroscopes are embedded in avionics, fire control, and stabilization systems. These sensors contribute to:

• Fly-by-wire systems
• Autopilot and navigation systems
• Targeting pods and optical stabilization
• Vehicle platform stabilization for ground and naval vehicles

The rugged nature of MEMS gyroscopes makes them suitable for harsh operational environments, including vibration and shock-prone conditions.

Counter-UAS and electronic warfare

MEMS gyroscopes are used in counter-unmanned aircraft systems (C-UAS) and electronic warfare tools to support:

• Directional antennas and sensor stabilization
• Tracking hostile UAVs through motion prediction
• Guidance of interception or jamming systems
• Orientation of high-precision optics

As drones become a common threat vector, MEMS gyroscopes support real-time positioning and targeting solutions within compact countermeasures.

Guided munitions and ordnance

In smart weapons and guided munitions, MEMS gyros help deliver high accuracy while maintaining a compact footprint. Key uses include:

• Fuze orientation and arming logic
• Mid-course and terminal guidance
• Spin rate and roll angle detection in artillery rounds
• Missile fin stabilization

Their resistance to extreme acceleration and temperature makes MEMS gyros suitable for use in projectiles and missiles.

Naval and underwater systems

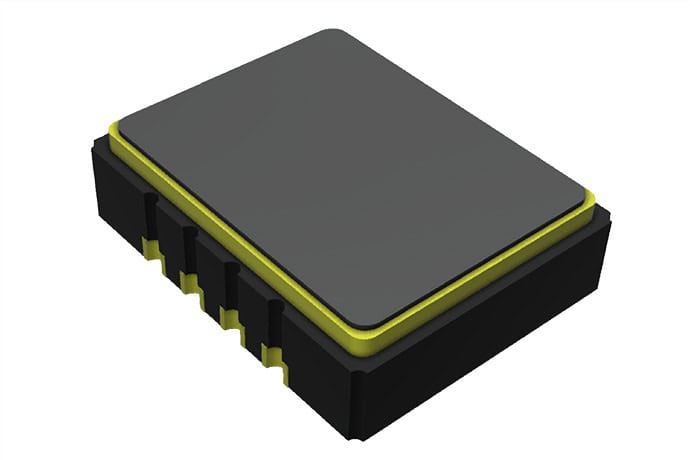

MEMS Sensor Gyroscope by Emcore

Though underwater applications present challenges for MEMS due to pressure and thermal variability, ruggedized MEMS gyros still serve in:

• Submarine navigation
• Torpedo guidance
• Naval surface vessel stabilization
• Gyroscopic compasses

In integrated systems, MEMS gyroscopes complement magnetic and acoustic sensors to improve underwater inertial navigation.

Integration with other MEMS Sensors

MEMS gyroscopes are often integrated with MEMS accelerometers and magnetometers to form complete inertial measurement units (IMUs). These multi-axis IMUs provide robust positional tracking and orientation data, crucial in environments where GPS is unavailable or unreliable. MEMS sensors also pair with barometers and GPS receivers in fusion algorithms that deliver more accurate positioning.

Advantages of MEMS Gyroscopes in Defense

The benefits of MEMS gyroscopes for defense applications are numerous:

• Miniaturization: Ideal for portable and embedded systems
• Low power consumption: Extends battery life in mobile platforms
• Shock and vibration resistance: Suitable for rugged environments
• Cost-effective mass production: Enables deployment at scale
• Scalability: Easily adapted across system sizes and platforms

These advantages have driven widespread adoption in both tactical and strategic defense systems.

Military standards for MEMS gyroscopes

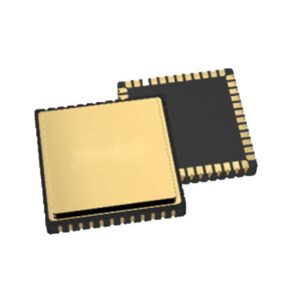

Microelectromechanical systems gyroscope sensors by Micro Magic

To ensure reliability under extreme conditions, MEMS gyroscopes used in defense must comply with rigorous military standards. Two of the most important are:

MIL-STD-883: Specifies test methods for microelectronic devices, including resistance to temperature fluctuations, vibration, and mechanical shock. Devices meeting Class H of this standard are tested for hermetic sealing and long-term durability.

MIL-STD-810: Focuses on environmental engineering considerations, ensuring equipment can function under harsh operational stresses such as humidity, thermal cycling, and intense vibration.

These specifications ensure that MEMS sensors deliver dependable performance in the most demanding battlefield environments.

The Future of MEMS Gyroscopes in Defense Systems

As defense operations increasingly rely on compact, networked, and autonomous systems, MEMS gyroscope technology continues to evolve. Advances in fabrication techniques are leading to sensors with greater sensitivity, reduced bias drift, and improved thermal stability. Emerging designs are also addressing the need for higher dynamic ranges and robustness under extreme shock and vibration, broadening their use in advanced weaponry and high-speed platforms.

MEMS gyroscopes are becoming central to AI-driven systems that rely on inertial data for real-time decision-making. Their integration into SWaP-optimized (Size, Weight, and Power) systems will be critical in the deployment of next-generation unmanned platforms, wearable systems, and precision munitions. Additionally, enhanced sensor fusion—combining MEMS gyroscopes with AI-powered data interpretation—will enable smarter, more autonomous responses in complex battlefield environments.

In summary, MEMS gyroscopes are a foundational technology in modern defense, enabling mission-critical functions across air, land, sea, and space domains. Their ongoing development will further reduce system size and cost while increasing functionality, positioning them as essential enablers of future military innovation.
