Military Spec Atomic Clocks

Military-spec atomic clocks are critical tools in modern defense operations, delivering the high levels of precision and stability required for secure communications, navigation, and electronic warfare systems.

These highly specialized devices are designed to maintain synchronization across distributed networks, and leverage cutting-edge technologies such as optical pumping while adhering to rigorous standards such as ITU-T G.811.1.

Table of Contents:

• Atomic Timekeeping in Military & Defense Systems
• Key Atomic Clock Technologies
• Applications of Military Spec Atomic Clocks

Atomic Timekeeping in Military & Defense Systems

Atomic timekeeping is a foundational element in defense systems, ensuring the precise synchronization of critical technologies across air, land, sea, and space.

Unlike quartz oscillators, which are susceptible to drift over time, atomic clocks maintain exceptional stability and accuracy. Their reliance on the natural oscillations of certain atoms—such as cesium or rubidium—makes them indispensable for time-critical military applications.

In the military domain, atomic timekeeping supports operations that demand minimal latency and absolute precision. For instance, coordinating drone swarms, enabling accurate missile guidance, and operating jamming and spoofing countermeasures all depend on timing systems that can operate flawlessly under extreme conditions.

EPRTC

Enhanced Primary Reference Time Clocks (EPRTCs), which are built to withstand signal interference, jamming, and spoofing attempts, utilize one or two atomic clocks to provide accurate and resilient timing even when GNSS signals are unavailable.

Key Atomic Clock Technologies

Cesium Atomic Clocks

Cesium atomic clocks are considered the gold standard for timekeeping accuracy. They use the oscillations of cesium atoms as their frequency standard, enabling stability that surpasses conventional timing methods. Military-spec cesium clocks often incorporate magnetic cesium and optical pumping technology, enhancing their performance in field operations.

Applications of cesium clocks include:

• Global Navigation Satellite Systems (GNSS): Cesium clocks ensure the precise synchronization of satellites, critical for GPS and military navigation systems.
• Missile Guidance: High-accuracy timekeeping supports the coordination of guidance systems for strategic missiles.
• Secure Communications: Cesium atomic clocks play a vital role in cryptographic protocols that rely on synchronized key exchanges.

Rubidium Atomic Clocks

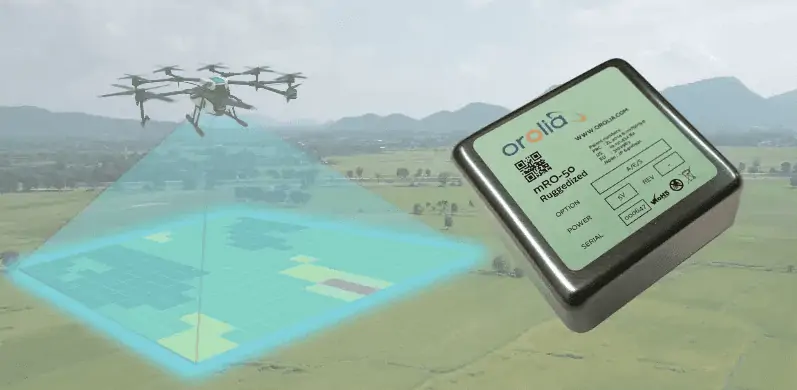

Rubidium atomic clocks offer a compact, energy-efficient and less costly alternative to cesium models. These clocks are particularly well-suited for portable systems and applications where power constraints are a concern. Rubidium oscillators deliver high stability for their size, making them ideal for use in unmanned aerial systems (UAS) and satellites.

Rubidium clocks are frequently deployed in:

• Handheld Military Devices: Their small form factor supports portability for field operations.
• Spacecraft Systems: Lightweight and energy-efficient rubidium clocks are commonly integrated into satellite payloads.
• Communication Networks: Rubidium oscillators provide reliable timekeeping for mobile and distributed communication nodes.

Hydrogen Masers

Hydrogen masers represent a high-performance category of atomic clocks, offering ultra-stable frequency outputs. These clocks are often used in advanced military systems requiring excellent short-term stability and low phase noise.

Hydrogen masers are particularly beneficial for:

• Deep Space Navigation: Their precision supports long-range space missions and satellite tracking.
• Radar Systems: The low phase noise of hydrogen masers enhances radar resolution and accuracy.
  Electronic Warfare: Advanced jamming and spoofing systems rely on hydrogen masers to maintain precise timing under adversarial conditions.

Chip-Scale Atomic Clocks (CSACs)

Chip-scale atomic clocks represent the latest advancement in miniaturized timekeeping technologies. These devices are small enough to fit into compact systems, yet they deliver the stability and accuracy of larger atomic clocks.

CSACs are ideal for:

• Portable Defense Systems: Miniaturized clocks enable the deployment of timekeeping technologies in drones, wearable systems, and autonomous vehicles.
• Hardened Timing Systems: CSACs are designed to withstand harsh conditions and electromagnetic interference.

Applications of Military Spec Atomic Clocks

Navigation and Guidance Systems

Precise timing is crucial for navigation and guidance systems, particularly in GPS-reliant operations. Atomic clocks synchronize satellite constellations, ensuring accurate positioning data for military assets. Additionally, GPS disciplined oscillators (GPSDOs) integrate GPS receivers with external reference atomic clocks, providing enhanced accuracy even in GPS-denied environments.

Secure Communications

Military communication systems rely on synchronized timing for encryption and secure key exchange protocols. Cesium and rubidium clocks ensure that data transmissions remain secure and immune to timing-related vulnerabilities.

Electronic Warfare

In electronic warfare, atomic clocks support the detection and neutralization of jamming and spoofing attempts. Hardened timing systems equipped with advanced shielding maintain functionality even in the presence of electromagnetic interference. Enhanced Primary Reference Clocks (EPRCs) and EPRTCs are designed to operate seamlessly in these high-threat scenarios.

Space and Satellite Operations

Atomic clocks are integral to the synchronization of satellite networks, ensuring accurate data transmission and coordination among orbital assets. Technologies such as hydrogen masers and chip-scale atomic clocks are increasingly deployed in space systems due to their reliability and resilience.

Radar and Missile Systems

The timing precision of atomic clocks enhances the performance of radar systems, improving target acquisition and tracking. Missile systems also benefit from the stability of cesium and rubidium clocks, which provide the temporal accuracy needed for real-time guidance adjustments.
