Military PTP Clock Systems (Precision Time Protocol)

Military PTP (Precision Time Protocol) clock systems deliver precise time synchronization for mission-critical applications, ensuring seamless coordination of operations across a variety of different platforms and devices.

With stringent accuracy requirements, PTP clock systems have become indispensable for maintaining operational superiority in complex and dynamic military environments.

Table of Contents:

• What is PTP – Precision Time Protocol?
• Components of Military PTP Clock Systems
• Precision Time Protocol in Military Applications
• PTP Clock Standards

What is PTP – Precision Time Protocol?

Precision Time Protocol (PTP) is a highly accurate time synchronization protocol defined by the IEEE 1588 standard.

PTP achieves microsecond to nanosecond precision by synchronizing clocks across devices within a network. Unlike older synchronization methods such as NTP (Network Time Protocol), which operates on millisecond accuracy, PTP is designed to meet the rigorous demands of applications where even minor timing errors can have critical consequences.

Military PTP clock systems leverage the advanced capabilities of PTP to provide unparalleled precision in timing-sensitive scenarios. By synchronizing clocks across various nodes, PTP ensures that communication, targeting, navigation, and other critical operations occur without temporal discrepancies. This precision is achieved through the use of specialized hardware components, such as grandmaster clocks and transparent clocks, which mitigate the effects of network latency and jitter.

PTP networks can scale to accommodate large and complex infrastructures, making them suitable for global defense operations and distributed systems.

Components of Military PTP Clock Systems

Military PTP clock systems may be composed of a number of different components, each playing a critical role in ensuring precision and reliability:

Grandmaster Clocks (GM)

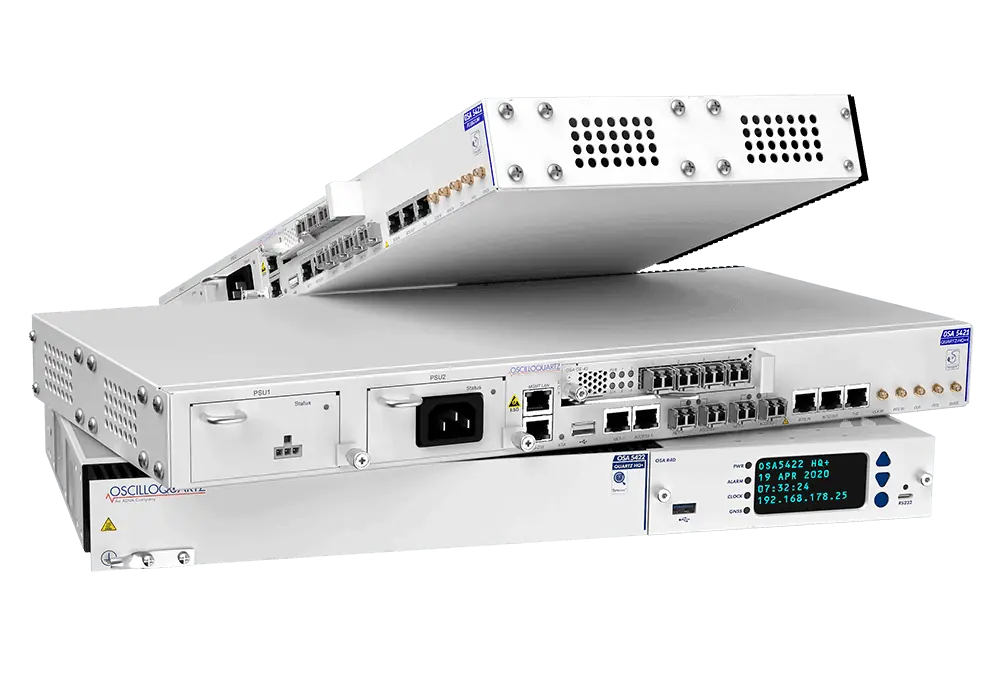

OSA 5405-S PTP Grandmaster Clock & NTP Server by Oscilloquartz

At the heart of a PTP network lies the grandmaster clock. It serves as the primary time reference, distributing highly accurate time signals to all other nodes in the network, and is typically synchronized with GPS or CDMA. Grandmaster clocks are typically installed in pairs to provide critical redundancy, with only one clock active at a time.

Military-grade grandmaster clocks are designed to operate under extreme conditions, ensuring dependable performance in scenarios such as combat communications, missile defense systems, and real-time data exchanges.

Slave Clocks

Slave clocks synchronize with the grandmaster clock to maintain precise timing across devices within the network. Multiple slave clocks can synchronize with a single grandmaster clock, and the messages between them are defined by the PTP protocol.

Boundary Clocks (BC)

Boundary clocks deliver the timing signals to the end devices, mitigating the effects of network hierarchy and latency and reducing the load on the grandmaster clock. These devices play a vital role in reducing timing errors, ensuring consistent performance in large-scale, distributed military systems.

Transparent Clocks (TC)

Transparent clocks, including peer-to-peer transparent clocks (P2P TC), also deliver timing signals to end devices. They improve synchronization accuracy by measuring and compensating for the delays introduced by network devices such as switches and routers.

Ordinary Clocks (OC)

Ordinary clocks connect directly to the grandmaster clock or other PTP-enabled devices and are typically devices that require synchronization. They can act as master or slave.

Applications of Military PTP Clock Systems

Military PTP clock systems have wide-ranging applications across defense operations, enabling precise timing in a variety of mission-critical contexts:

Secure Communication Networks: PTP clock systems ensure encrypted communications are precisely time-stamped, enhancing the security and reliability of transmissions. Synchronization is essential for avoiding data collisions and maintaining the integrity of secure communication links.

Command and Control (C2) Systems: Precise timing is critical for coordinating command and control systems across dispersed units. PTP clock systems enable seamless synchronization, allowing forces to execute time-sensitive operations with precision and efficiency.

Surveillance and Reconnaissance: PTP synchronization ensures real-time data integration from multiple sensors and platforms, providing enhanced situational awareness. Whether integrating satellite imagery, radar data, or UAV feeds, these systems support accurate decision-making in fast-changing environments.

Weapon Systems and Targeting: Modern weapon systems rely on precise timing for targeting, firing, and guidance. PTP clock systems ensure that all components work in harmony, from radar tracking to missile launches, enabling precise execution of combat operations.

Simulation and Testing: In defense research and development, PTP clock systems provide the high-precision timing required for testing and simulation environments. This ensures that new technologies are accurately evaluated under conditions that mimic real-world military operations.

PTP Clock Standards

Military PTP clock systems adhere to rigorous standards to ensure interoperability, reliability, and precision.

IEEE 1588 and Variants

The foundation of PTP clock systems lies in the IEEE 1588 standard, including its variations such as IEEE 1588-2002 and PTP version 2 (PTPv2). These standards define the mechanisms for achieving precise time synchronization, ensuring compatibility across devices and platforms.

PTPv2, the most widely used version in defense applications, introduces enhancements for scalability, fault tolerance, and accuracy. It supports features like boundary clock and transparent clock functionality, enabling robust synchronization in complex network environments.

Interoperability with NTP

While PTP offers superior accuracy, interoperability with NTP remains essential in hybrid networks where legacy systems are still in use. Military PTP clock systems often include NTP support, bridging the gap between traditional and modern timing solutions.
